The Toastboard

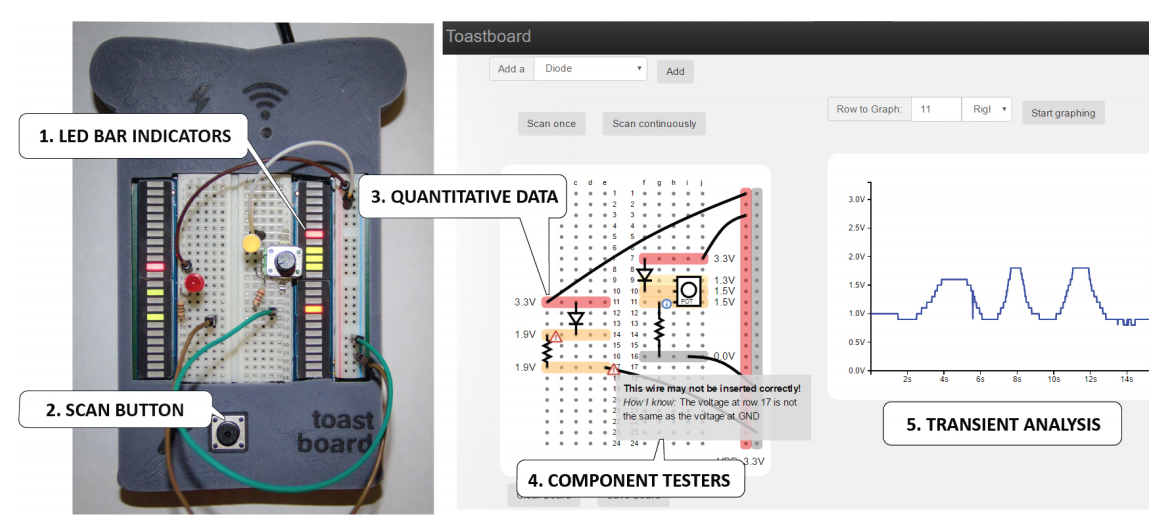

The Toastboard is an instrumented breadboard to make debugging circuits easier. The device takes voltage readings at every row of the breadboard and displays them on the LED bars and on the accompanying software client. Virtual components can be placed on the software client for additional help in identifying issues.

Read the paper!
